T190
Resilient Acoustic Ceiling Damper System
The T190 Resilient Acoustic Ceiling Damper System is a spring-isolated ceiling build-up engineered for demanding airborne sound-insulation applications. SG-CD50 Ceiling Shock Dampers with neoprene-lined steel spring hangers suspend the cassette-keel frame from the concrete slab, breaking the structural sound bridges that carry noise between floors.
A 50 mm mineral / synthetic wool absorption layer fills the 150 mm cavity, while SG-DM452 Vibration Damping Tape isolates every rigid keel-to-board connection. The composite sound-insulation board and finish layer complete a decoupled, high-mass ceiling that reaches STC 44 / Rw 44 dB at roughly 190 mm total thickness.

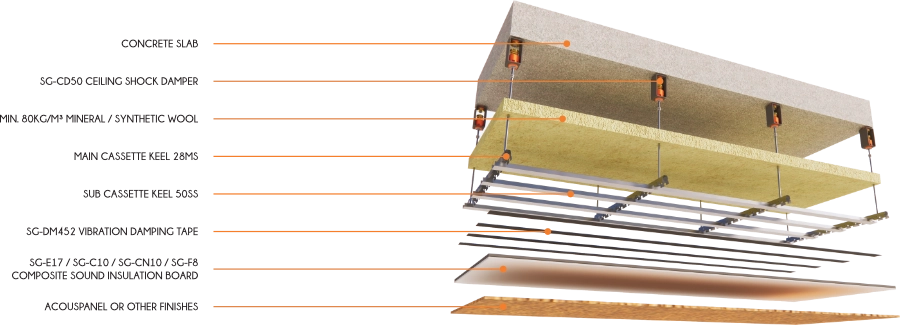

Exploded Mounting Structure
8 layers · top to bottom
Layer Build-up
- 1
Concrete Slab
- 2
SG-CD50 Ceiling Shock Damper
50 × 50 × 100 mm
- 3
Min. 80 kg/m³ Mineral / Synthetic Wool
600 × 1200 × 50 mm
- 4
Main Cassette Keel 28MS
- 5
Sub Cassette Keel 50SS
- 6
SG-DM452 Vibration Damping Tape
45 × 6000 × 2 mm
- 7

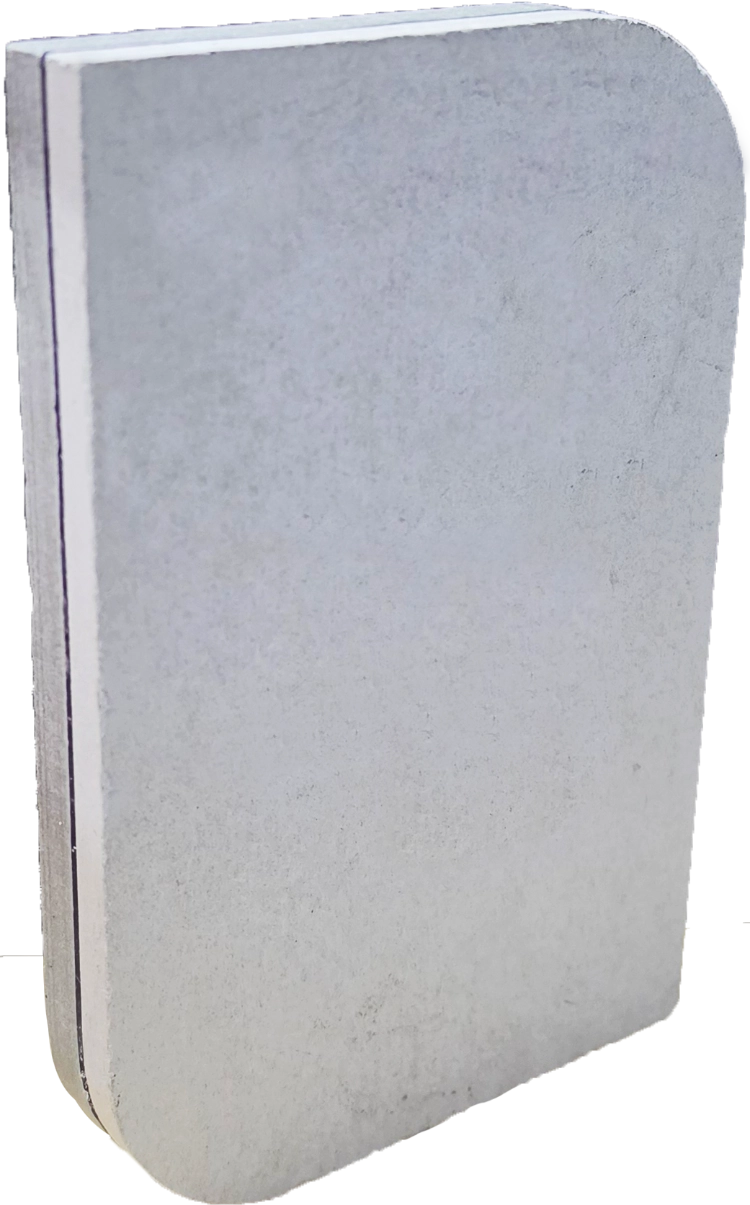

Composite Sound Insulation Board
1220 × 1220 × 17–18 mm
- 8
AcousPanel or Other Finishes
Layer Specifications
| Layer | Product | Specification | Application |
|---|---|---|---|
| Damper | Ceiling Shock Damper | 50 × 50 × 100 mm | Break sound bridges |
| Absorption | Mineral Wool / Synthetic Wool | 600 × 1200 × 50 mm | Uses sound absorption to enhance insulation |
| Structure | Cassette Keel | Main: 28 mm | Sub: 50 mm | Secure fit with preserved acoustic decoupling |
| Damper | Vibration Damping Tape | 45 × 6000 × 2 mm | Minimized rigid connections |
| Insulation | Composite Sound Insulation Board | 1220 × 1220 × 17–18 mm | Greatly improves sound insulation performance |
System Description
Panel 1
1 × 100 mm Concrete + 1 × 2 mm Rubber
Frame
Steel Spring Hanger with Neoprene, spacing 600 mm, cavity width 150 mm + 50 mm Mineral Wool (80 kg/m³)
Panel 2
1 × 8 mm Fibre Cement + 1 × 1.3 mm Rubber + 1 × 6 mm Plasterboard
Details
Panel size 2.4 m × 2.4 m · Partition surface mass 27 kg/m² · Mass-air-mass resonant frequency 84 Hz
Acoustic Performance
Sound Insulation Prediction
All STC, OITC and acoustic performance figures are estimated / simulated values (INSUL Sound Insulation Prediction v9.0.22, © Marshall Day Acoustics 2017) intended solely as design references — not guaranteed field performance. Final results depend on site conditions, construction details and installation quality, beyond the control of INSUL.
