Installation Systems

INSUL Insulation
Systems

Engineered ceiling, wall and floor acoustic systems — each a decoupled room-in-room build-up with INSUL-simulated STC, OITC and impact ratings.

Installation Principle

Room-in-Room Acoustic Isolation

Professional acoustic isolation uses a room-in-room construction principle — building a mechanically decoupled inner structure that prevents sound transmission through the building fabric.

Sound travels through both solid structures and air. To achieve effective insulation, the interior space is decoupled from the original walls, floors and ceilings so that sound and vibration cannot be directly transmitted — creating an isolated room-in-room structure separated from the existing building.

The approach combines three layers of defence: vibration dampers to decouple the inner room from the structure, mineral wool to absorb airborne sound within the cavity, and composite insulation boards to block remaining energy through the Mass-Spring-Mass principle. Every junction between inner and outer structure is a potential sound bridge, closed by shock dampers, damping tape and acoustic sealant.

Key Insight

Increasing panel thickness and weight helps only to a limited extent — doubling panel density adds roughly 6 dB. Professional insulation relies on a balanced combination of material, density, thickness and structural decoupling to reach high performance within limited space, rather than mass alone.

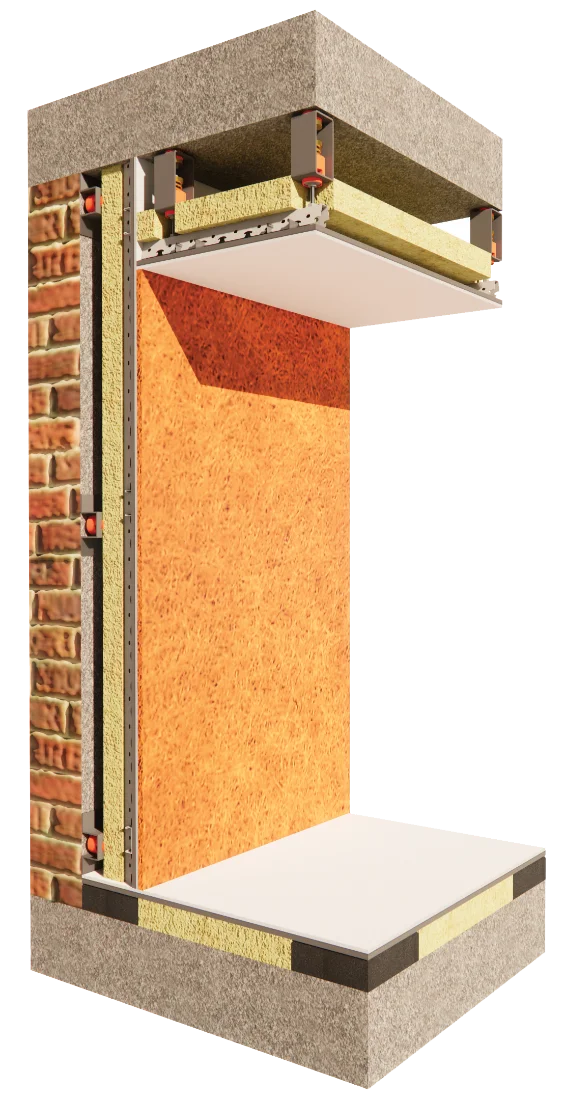

3D isometric cutaway diagram showing room-in-room acoustic isolation layers including shock dampers, mineral wool insulation, and composite sound insulation boards

Every connection point is a potential sound bridge. Every layer has a purpose.

INSUL Systems

Engineered Insulation Systems

Every system below is a complete, decoupled build-up validated with INSUL acoustic simulation. Choose by surface — ceiling, wall or floor — then open a system for its full layer stack, specifications and prediction chart.

Acoustic values are estimated / simulated design references (INSUL Sound Insulation Prediction v9.0.22) — not guaranteed field performance.

Ceiling Systems

Suspended and direct-fixed ceiling build-ups that isolate impact and airborne noise between floors.

T190

Resilient Acoustic Ceiling Damper System

STC 44Rw 44 dB ±5 dB≈ 190 mm

Spring-hung resilient ceiling system using SG-CD50 shock dampers and a cassette-keel frame to decouple a heavy insulation ceiling from the slab for high airborne sound reduction.

View system →

T90

Lightweight Acoustic Ceiling Damper System

STC 44Rw 44 dB ±5 dB90–120 mm

A slim, direct-fixed ceiling system using rubber-isolated cassette keels and built-in shock dampers to deliver strong sound insulation where ceiling depth is limited.

View system →

T90Pro

Advance Acoustic Ceiling Damper System

STC 45Rw 45 dB ±5 dB90–120 mm

An upgraded lightweight ceiling that adds an SG-DM612A vibration damping pad above the frame for extra decoupling, lifting performance to STC 45 / Rw 45 dB within the same slim depth.

View system →

T90Double

Dual Acoustic Ceiling Damper System

STC 44Rw 44 dB ±5 dB90–120 mm

A double-panel lightweight ceiling combining an SG-DM612A damping pad with a twin insulation/plasterboard skin for very high mid-to-high-frequency attenuation in a slim depth.

View system →

Wall Systems

Independent and dual-cavity wall linings that decouple the room from the base structure.

Q130

Resilient Acoustic Wall Damping System

STC 44Rw 44 dB ±5 dB≈ 130 mm

A resilient independent wall lining that uses SG-DM102 damping mat and SG-WD50 wall shock dampers to isolate a high-mass cassette-keel wall from the base structure.

View system →

Q70

Lightweight Acoustic Wall Damping System

STC 41Rw 41 dB ±5 dB70–90 mm

A space-saving direct-fixed wall lining using rubber-isolated cassette keels and built-in shock dampers for solid sound insulation in a slim 70–90 mm depth.

View system →

Q140

Dual-Cavity Acoustic Wall System

STC 41Rw 41 dB ±5 dB70–90 mm

A free-standing dual-cavity partition using deep 112/114 mm cassette keels and a partition board to create a fully independent wall where no solid base wall exists.

View system →

Floor Systems

Floating floor and screed systems that break impact-noise transmission into the slab.

D10

Floating Screed Acoustic Floor Damping System

IIC 64≈ 28 dB ±5 dB≈ 10 mm

An ultra-thin floating-screed underlay using the SG-DM1010 vibration damping mat beneath self-leveling cement to cut impact noise with almost no loss of floor height.

View system →

D45

Dry Floating Floor Damping System

IIC 60≈ 32 dB ±5 dB≈ 70 mm

A high-performance floating floor on SG-FD50/25 damping blocks with a wool-filled cavity and composite insulation board for strong impact and airborne isolation.

View system →
