T90Pro
Advance Acoustic Ceiling Damper System
The T90Pro Advance Acoustic Ceiling Damper System builds on the lightweight T90 by adding an SG-DM612A Vibration Damping Pad between the slab and the frame. This extra resilient layer further isolates the cassette-keel structure, suppressing low-frequency transmission and raising performance to STC 45 / Rw 45 dB while keeping the same slim 90–120 mm build-up.
It is the preferred choice where a lightweight ceiling must reach a higher insulation grade without the depth or cost of a spring-hung resilient system.

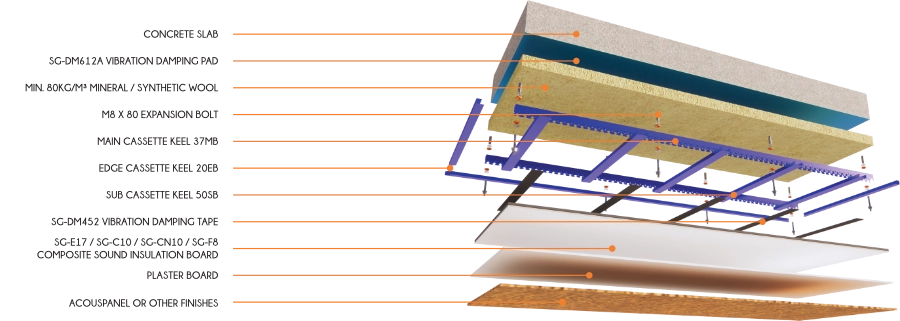

Exploded Mounting Structure
11 layers · top to bottom
Layer Build-up
- 1
Concrete Slab
- 2
SG-DM612A Vibration Damping Pad
610 × 610 × 2 mm
- 3
Min. 80 kg/m³ Mineral / Synthetic Wool
600 × 1200 × 50 mm
- 4
M8 × 80 Expansion Bolt
- 5
Main Cassette Keel 37MB
- 6
Edge Cassette Keel 20EB
- 7
Sub Cassette Keel 50SB
- 8
SG-DM452 Vibration Damping Tape
45 × 6000 × 2 mm
- 9
Composite Sound Insulation Board
1220 × 1220 × 17–18 mm
- 10
Plaster Board
- 11
AcousPanel or Other Finishes
Layer Specifications
| Layer | Product | Specification | Application |
|---|---|---|---|
| Damper | Vibration Damping Pad | 610 × 610 × 2 mm | Break sound bridges |
| Damper | Built-in Shock Damper | 20 × 20 × 10 mm | Break sound bridges |
| Absorption | Mineral Wool / Synthetic Wool | 600 × 1200 × 50 mm | Uses sound absorption to enhance insulation |
| Structure | Cassette Keel | Main: 28 mm | Sub: 50 mm | Secure fit with preserved acoustic decoupling |
| Damper | Vibration Damping Tape | 45 × 6000 × 2 mm | Minimized rigid connections |
| Insulation | Composite Sound Insulation Board | 1220 × 1220 × 17–18 mm | Greatly improves sound insulation performance |
System Description
Panel 1
1 × 100 mm Concrete + 1 × 2 mm Rubber
Frame
Rubber isolation clip on metal stud (37 mm × 26 mm), spacing 600 mm, cavity width 150 mm + 50 mm Mineral Wool (80 kg/m³)
Panel 2
1 × 8 mm Fibre Cement + 1 × 1.3 mm Rubber + 1 × 6 mm Plasterboard
Details
Panel size 2.4 m × 2.4 m · Partition surface mass 24.5 kg/m² · Mass-air-mass resonant frequency 146 Hz
Acoustic Performance
Sound Insulation Prediction
All STC, OITC and acoustic performance figures are estimated / simulated values (INSUL Sound Insulation Prediction v9.0.22, © Marshall Day Acoustics 2017) intended solely as design references — not guaranteed field performance. Final results depend on site conditions, construction details and installation quality, beyond the control of INSUL.
